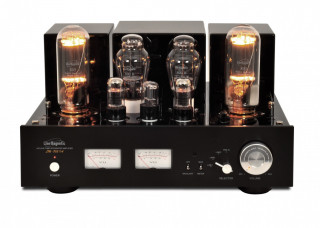

Ny integrerad förstärkare från Line Magnetic med 805-rör i slutsteget och 300B-rör i drivsteget.

Forty-eight watts per channel, Single Ended design, Pure Class A Integrated Stereo Amplifier with 805 output power tubes, the LM-805 is a quality upgrade of the previous LM-508 with better components.All tube Integrated with 6SL7 and 6SN7 input tubes for voltage amplification, 300B driver tubes, and 805 output tubes.Well selected and matched tubes. No matter it is the Pre-stage or power stage of tubes we select and choose the best matching ones to use on the same unit of amplifier to get the best sound quality out of it.

Different from other inputs Pre-In offers you a possibility to connect to some other Preamplifier so that you can the LM-805IA as a power amplifier.User bias control has been used for bias adjustment and External Hum Balance adjustment for noise level.Negative Feedback switch is on the top plate that you can choose between four levels of NFB to enjoy the different sound output of the LM-805IA tube amplifier.

Specially designed Super big and strong Toroid transformers made of Z11 Core for power supply and two Japanese Audio grade EI types of output transformers with wide bandwidth are applied. All transformers and chokes are encapsulated and installed separately on the amplifier to avoid and lower the disturbance between each other.

Specifications:

• Amplification Class: AB
• Power: 2x48W RMS
• Frequency Response: 10-50.000Hz
• Signal/Noise Ratio: 87dB
• THD: 1% (1kHz)
• Sensitivity: 300mV, (1000mV Pre-in)
• Output Impedance: 4/8/16 ohm
• Input Impedance: 100K ohm

Tubes:

• Input Stage: 2x 6SN7
• Power Stage: 2x 805, Single End
• Drive Stage: 2x 300B
• Rectifier: 1x 6SL7

Connectors:

• Analog Inputs: 3x RCA / 1x RCA Pre-in

General:

• Finish: Black
• Dimensions (WxHxD) mm: 430x365x220
• Weight: 40 Kg

TAG KONTAKT FÖR INFORMATION OM LEVERANSTID
